Movax – Side Grip – Variable Eccentric Moment
About Movax – Side Grip – Variable Eccentric Moment

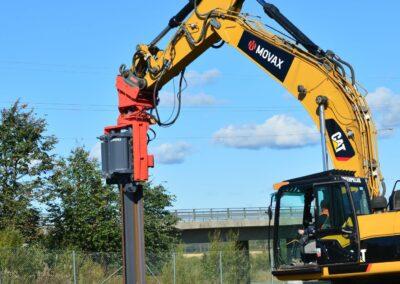

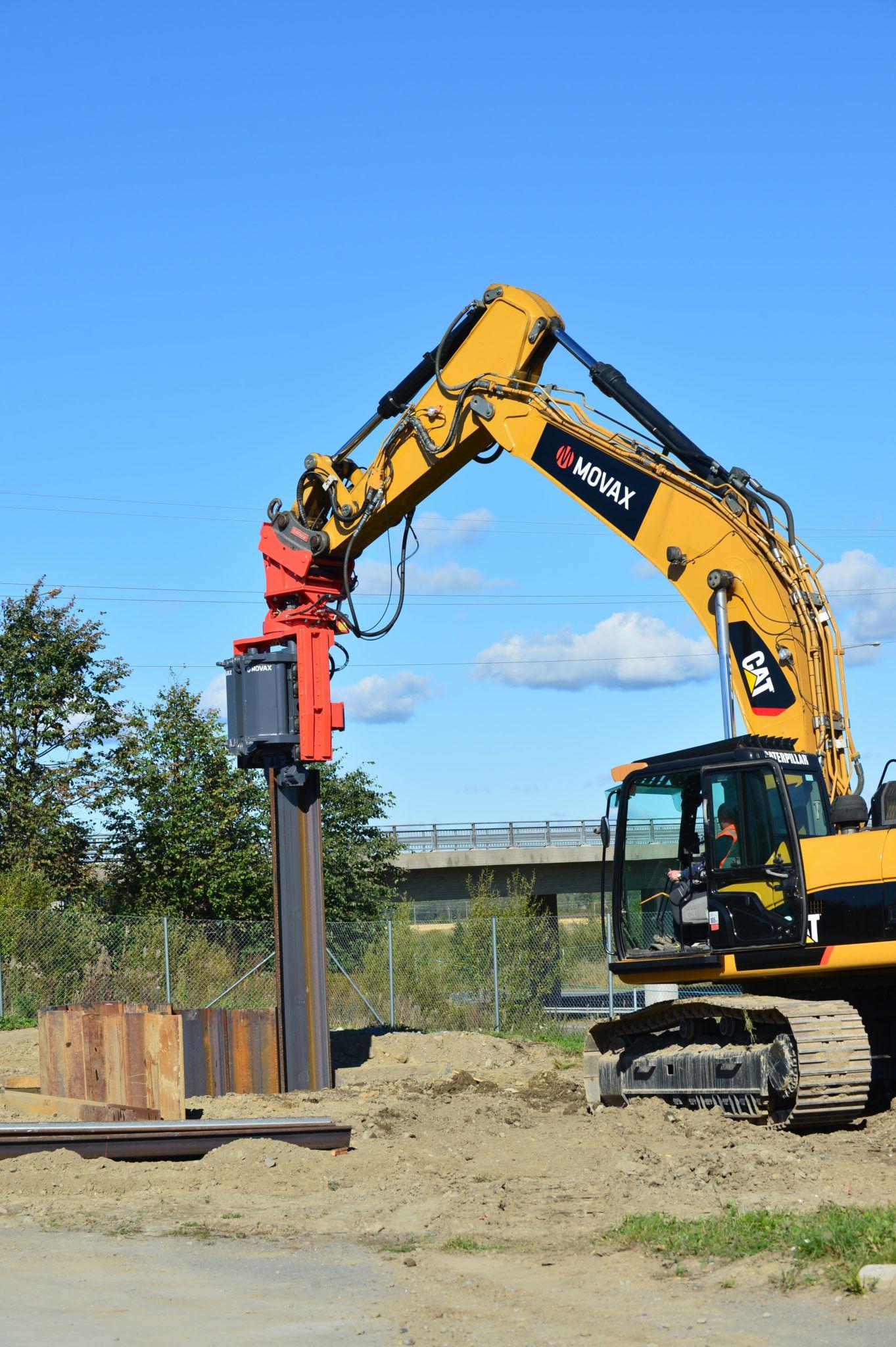

The Movax range of variable eccentric moment side grip pile drivers have been designed to minimise disturbances to the surrounding environment by operating at high frequencies. Like the fixed moment models, they have interchangeable arms, clamps and pads to enable the same pile driver to handle a wide variety of piles.
They can be fitted onto a wide selection of crawler and wheeled excavators as well as railroaders.
Used for handling, pitching, driving and extracting piles in a number of different site and soil conditions.
How can we help?
“We can offer advice on the best Movax side grip to fulfil your requirements and offer you a personalised quote.”
Scott
Models
| Weight (excl. adapter) (kg) | 2490-2790 |
|---|---|
| Height (mm) | 2530 |
| Depth (mm) | 1180-1436 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Weight (excl. adapter) (kg) | 2500-2800 |
|---|---|
| Height (mm) | 2530 |
| Depth (mm) | 1180-1436 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Weight (excl. adapter) (kg) | 2650 - 2950 |
|---|---|
| Height (mm) | 2550 |
| Depth (mm) | 1180 - 01436 |
| Available to buy? | Yes |
| Available to rent? | No |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Weight (excl. adapter) (kg) | 3500-3750 |
|---|---|
| Height (mm) | 2615 |
| Depth (mm) | 1115 |
| Available to buy? | Yes |
| Available to rent? | Yes |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Make a hire enquiry | |
| Weight (excl. adapter) (kg) | 3200-3600 |
|---|---|
| Height (mm) | 2860 |
| Depth (mm) | 1250-1450 |
| Available to buy? | Yes |
| Available to rent? | Yes |
| Download Specification Sheet | |
| Make a sale enquiry | |
| Make a hire enquiry | |
Specification Table
| Model | SG-45V | SG-50V | SG-60V | SG-75V | SG-80VA |
|---|---|---|---|---|---|
| Available to buy | Yes | Yes | Yes | Yes | Yes |
| Available to hire | No | No | No | Yes | Yes |
| Technical Specifications | |||||
| Weight (excl. adapter) (kg) | 2490-2790 | 2500-2800 | 2650 - 2950 | 3500-3750 | 3200-3600 |
| Height (mm) | 2530 | 2530 | 2550 | 2615 | 2860 |
| Depth (mm) | 1180-1436 | 1180-1436 | 1180 - 01436 | 1115 | 1250-1450 |
| Width (mm) | 1193 | 1193 | 1193 | 1270 | 1230 |
| Excavator Class (t) | 20-24 | 23-28 | 28 - 32 | 33-50 | 33-50 |
| Engine Power - (min) TIER III/TIER IV (kW) | 100/120 | 125/135 | 135/160 | 180-200 | 180/200 |
| Return Pressure - Max. (bar) | 5 | 5 | 5 | 5 | 5 |
| Pressure Setting (bar) | 350 | 350 | 350 | 350 | 350 |
| Frequency (1/min) | 2300-3000 | 2300/3000 | 2300 - 3000 | 2300-3000 | 2300-3000 |
| Eccentric Moment (kgm) | 4.6 | 5.1 | 6.1 | 7.6 | 8.1 |
| Centrifugal Force - Max. (kN) | 450 | 500 | 600 | 750 | 800 |
| Ground Vibration | Low | Low | Low | low | minimal |
| Resonance Free Start/Stop | Yes | Yes | Yes | yes | yes |
| Driving Method | Vibration | Vibration | Vibration | vibration | vibration |
| Swing/Tilt Angle | 360/±30 | 360/±30 | 360/±30 | 360/30 | 360/±45 |
| Additional information | |||||
| Specification Sheet | Download | Download | Download | Download | Download |
| Sales Enquiry? | Sales Enquiry | Sales Enquiry | Sales Enquiry | Sales Enquiry | Sales Enquiry |
| Hire Enquiry? | Hire Enquiry | Hire Enquiry | |||
Configuration
Sheet Clamp
For driving and extracting sheet piles/’H’ piles/CFA cages.
Tube Clamps
Timber Box Clamps
Pile Types: Install and Extract
Z Piling Profile
U Single Piles
Timber Box Clamps
Tube Piles
Trench Sheets
Further Info
- Suitable for a wide variety of site and soil conditions
- Ideal for when space is limited or access is difficult

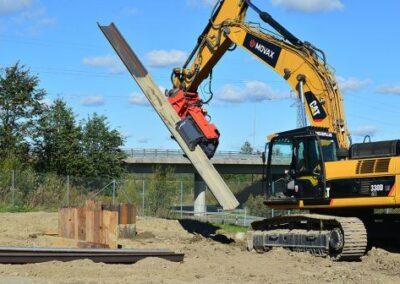

- Fast and efficient – handling, pitching, driving and extraction of piles
- Flexible – due to Movax modular system (MMSTM). The same unit can be utilised for multiple tasks and different type of piles
- Easy-to-operate – with Movax Control System (MCSTM)
- Precise and accurate pile driving
- Safe operation
- Easy maintenance
- Robust – designed for continuous operation
Our benefits to you
Bespoke Configuration
We can configure equipment to suit your requirements.
Dedicated Support
Modern Equipment
Gallery
Videos
About Movax
Movax is strongly committed to continuously developing its products and services and is the world’s leading developer of excavator-mounted side grip pile driving technology. It has several patents and its trademark is registered all over the world. With more than 2000 units delivered to more than 65 countries, on six continents – Movax is a proven supplier of innovative piling equipment.
